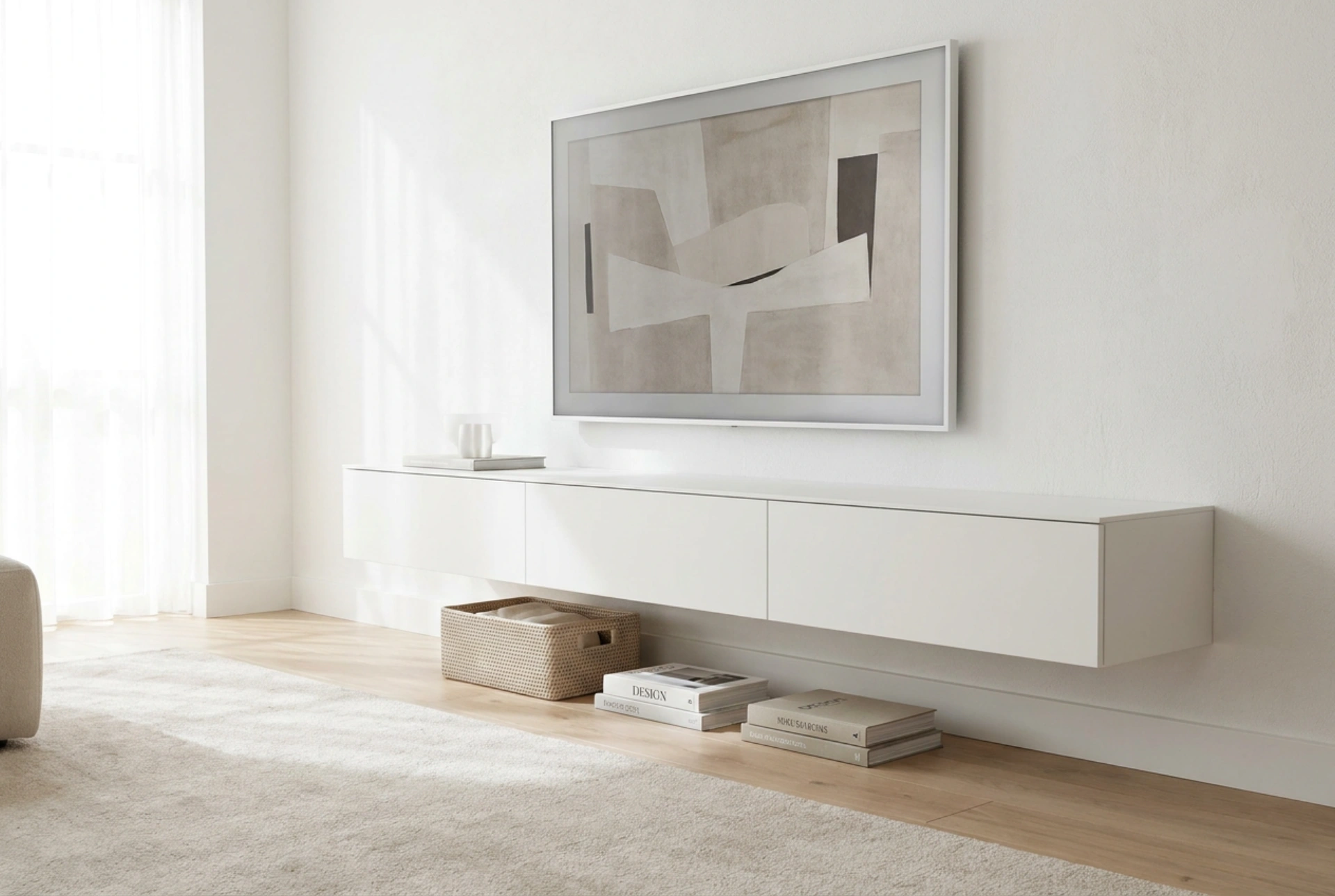

Achieving a seamless, wire-free television setup relies on understanding structural geometry and material physics rather than relying on temporary visual fixes. By planning an integrated cable conduit system before mounting your screen, you can prevent thermal buildup, protect sensitive signal lines, and eliminate airborne dust during installation.
The Physics of Cable Conduits: Diameter and Bend Radius
When routing power and data lines behind a wall, heat dissipation and physical strain are the primary physical constraints. Every copper conductor generates heat when current passes through it, a phenomenon known as Joule heating. When multiple cables are packed tightly within an enclosed plastic pipe or duct, this heat cannot easily escape, which can degrade the outer insulation over time.
To prevent thermal build-up and signal degradation, always follow the 40% fill rule. The combined cross-sectional area of all your cables—including power cords, coaxial cables, and digital interface lines—should not exceed 40% of the internal cross-sectional area of the conduit. This allows sufficient air gaps for convection currents to cool the wires. Additionally, data lines such as optical fibres and high-speed copper cables are susceptible to signal loss if bent too sharply. Maintaining a minimum bend radius of at least ten times the cable diameter ensures the internal glass or copper structures do not crack or deform under mechanical tension.
Selecting the Right Material: Conduit Types and Friction Dynamics
The choice of conduit material directly affects how smoothly cables can be pulled through the system. Smooth-walled polyvinyl chloride (PVC) pipes are highly recommended over corrugated flexible conduits for straight vertical runs. While flexible corrugated pipes are easier to snake through complex spaces, their internal ridges create high kinetic friction, which can snag cable connectors and strip protective jackets during installation.
If you must use a flexible conduit to navigate minor offsets within a hollow cavity wall, opt for a low-friction, polyethylene-lined spiral duct. Smooth-walled rigid PVC pipes reduce drag significantly, allowing gravity to assist when feeding cables from the top entry point to the lower exit point. Applying a small amount of non-conductive, wax-based cable pulling lubricant to the outer jackets can further minimise friction, allowing multiple lines to slide through without binding.
Managing Airflow and Dust Containment During Cutting
Creating openings in plasterboard or drywall inevitably releases gypsum particles, which are highly abrasive and hygroscopic. If these particles settle inside your electronics or behind the wall, they can attract moisture and lead to micro-corrosion. To maintain a dust-free environment, use a physical containment strategy when cutting the access points.
- Damp Containment: Place a damp microfibre cloth directly beneath the cutting zone. Gypsum dust carries a slight static charge and will bind immediately to the wet fibres rather than dispersing into the room.
- Vacuum Integration: Position a vacuum nozzle equipped with a high-efficiency particulate air (HEPA) filter directly adjacent to the cutting blade to capture particulate matter at the source of friction.
- Airtight Seals: Use brush plates or rubber grommets at the entry and exit points. These do not just hide the cut edges of the drywall; they restrict airflow, preventing convective drafts from carrying wall-cavity dust into your living space.
The Pull-String Method and Future-Proofing
A common error is pulling only the current set of cables through the wall, leaving no provision for future technology upgrades. To ensure your system remains adaptable, always install a dedicated draw wire or high-tensile nylon cord alongside your initial cables. This cord should remain permanently inside the conduit, anchored securely at both ends.
When a new cable needs to be added, you can attach it to the existing draw wire, pull it through, and simultaneously pull a new draw wire along with it. This cycle ensures you always have a mechanical line ready for the next upgrade. Always separate high-voltage mains power cables from low-voltage signal lines by a physical barrier or run them through separate, parallel conduits to prevent electromagnetic interference from degrading your audio and video signals.
