Installing a rotary washing line requires more than just pushing a spike into the grass; it demands an understanding of soil mechanics and lateral load distribution to prevent tilting under the weight of wet laundry.
Selecting the Optimal Location: Soil and Wind Physics
Before excavating or driving an anchor into the ground, analysing your garden's microclimate and soil structure is essential. A rotary dryer functions through a combination of solar radiation and convective heat transfer (wind). To maximise evaporation rates, position the dryer in an open area that receives direct sunlight for the majority of the day. However, high wind speeds exert significant kinetic energy on wet fabrics, translating into immense lateral leverage on the ground socket. Positioning the dryer slightly sheltered from the strongest prevailing winds—perhaps near a low hedge—reduces this mechanical stress while maintaining sufficient airflow.
Soil composition directly dictates the installation method. Clay soils offer high cohesion when dry but can become plastic and unstable when saturated with water, leading to anchor slippage. Sandy soils lack cohesion entirely, meaning they require a wider surface area of containment to resist lateral forces. Before starting, check your soil moisture level; overly dry soil is difficult to compact, while saturated soil will liquefy under compaction, ruining the structural integrity of the installation.
The Mechanics of Lateral Leverage and Soil Resistance
When fully loaded with wet textiles, a rotary washing line acts as a giant lever. The force of the wind pushing against the large surface area of the hanging washing creates a rotational force (torque) around the ground level pivot point. If the ground socket is too shallow, the soil at the top of the hole will compress and deform, causing the line to lean permanently.
To counteract this lever effect, you must distribute the load over a larger volume of soil. This is achieved by increasing the depth of the anchor and ensuring the backfill material is highly compacted. For every centimetre of depth added to the ground socket, the resistance to lateral tilting increases exponentially. A minimum depth of 40 to 50 centimetres is typically required to engage the stable, unweathered subsoil layers that lie beneath the active root zone of your lawn.
Step-by-Step Installation: Digging, Levelling, and Compacting
To install a ground socket without relying on heavy concrete, you can utilise a mechanical compaction method with gravel and soil. This technique provides excellent drainage and allows for minor adjustments over time.
- Excavation: Dig a cylindrical hole approximately three times the diameter of your ground anchor and 50 centimetres deep. Keep the sides of the hole vertical; sloped sides reduce the shear strength of the surrounding soil.
- Drainage Layer: Pour a 10-centimetre layer of coarse gravel (10-20 mm grain size) into the bottom of the hole. This acts as a capillary break, allowing rainwater to drain away from the metal or plastic socket, preventing frost heave in winter and rust formation on metal components.

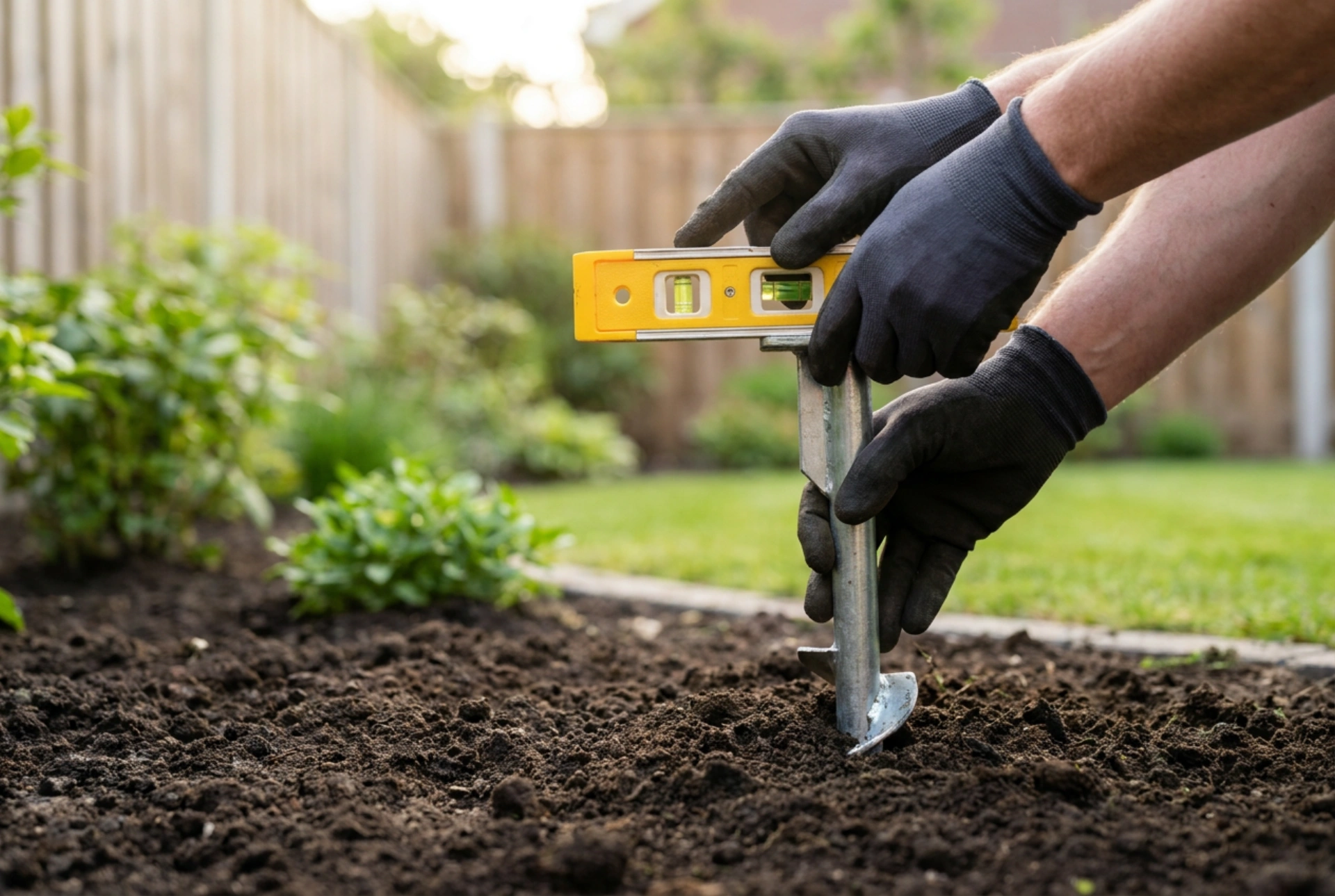

- Positioning and Levelling: Place the ground socket vertically in the centre of the hole. Insert the lower pole of the rotary dryer (or a scrap pipe of the same diameter) into the socket. This gives you a longer lever arm to check for vertical alignment using a spirit level. Check the alignment from two angles perpendicular to each other (90 degrees apart) to ensure true vertical placement.
- Incremental Backfilling: Begin filling the space around the socket using a mixture of gravel and excavated soil. Do not fill the entire hole at once. Fill in layers (known as lifts) of no more than 5 to 7 centimetres at a time.
- Compaction: After each lift, use a heavy wooden post or metal tamper to firmly compact the material. Compaction expels air pockets and forces the soil particles closer together, dramatically increasing the shear resistance of the soil matrix. Repeat this process until you reach 5 centimetres below the grass line.
- Finishing: Fill the remaining space with topsoil and replace the turf. This ensures the anchor remains flush with the lawn level, allowing you to run a lawnmower directly over it when the washing line is removed.
Long-Term Maintenance and Environmental Adaptation
Over the first few weeks of use, the ground around the socket will undergo natural settling, especially after heavy rainfall. Soil particles will realign under the dynamic load of the spinning washing line. Periodically check the verticality of the socket. If minor tilting occurs, do not attempt to bend the metal pole. Instead, use a tamping tool to compact the soil on the side opposite the tilt, forcing the socket back into alignment through soil displacement. By understanding the physical forces at play and utilising proper compaction techniques, you ensure a stable, long-lasting installation that keeps your washing high and dry for years to come.
