Modern laptops pack immense computational power into highly compact frames, making thermal management a critical factor for maintaining peak performance and component longevity. Understanding the fluid dynamics of laptop airflow and the role of cooling stands allows you to optimize heat dissipation scientifically.
The Thermodynamics of Laptop Heat Generation
Inside a laptop, the central processing unit (CPU) and graphics processing unit (GPU) generate heat as a byproduct of electrical resistance. To prevent permanent damage, manufacturers design heat transfer systems utilizing conduction and convection. Silicon chips transfer heat directly to copper heat pipes (conduction), which contain a vacuum-sealed liquid that vaporizes, carries heat to the radiator fins, and condenses back into liquid. Miniature internal blower fans then force air through these radiator fins (forced convection) to expel heat into the surrounding environment.
When the rate of heat generation exceeds the rate of dissipation, the internal temperature rises toward the junction temperature limit (TjMax). At this threshold, the system initiates thermal throttling—automatically reducing clock speeds to lower power consumption and prevent physical damage. This results in noticeable performance drops, lag, and system instability.
Intake and Exhaust: Mapping the Airflow Path
To optimize cooling, you must first identify your laptop’s specific airflow architecture. Most standard laptops utilize a bottom-to-top or bottom-to-back flow pattern. Cool air is drawn in through vents located on the underside of the chassis, guided over the motherboard components, forced through the heatsink, and expelled through exhaust vents near the screen hinge or side panels.
Placing a laptop directly on soft surfaces like blankets, beds, or even a lap restricts this intake. Fibers conform to the bottom of the casing, sealing off the intake grilles. This starves the internal fans of air, creating a low-pressure vacuum inside the chassis that stalls hot air around the critical silicone dies. Operating high-performance laptops on hard, flat surfaces is essential to maintain the designed clearance gap.
Passive vs. Active Stands: The Mechanics of Elevation
Laptop stands fall into two primary categories, each leveraging different physical principles to manage thermal loads:

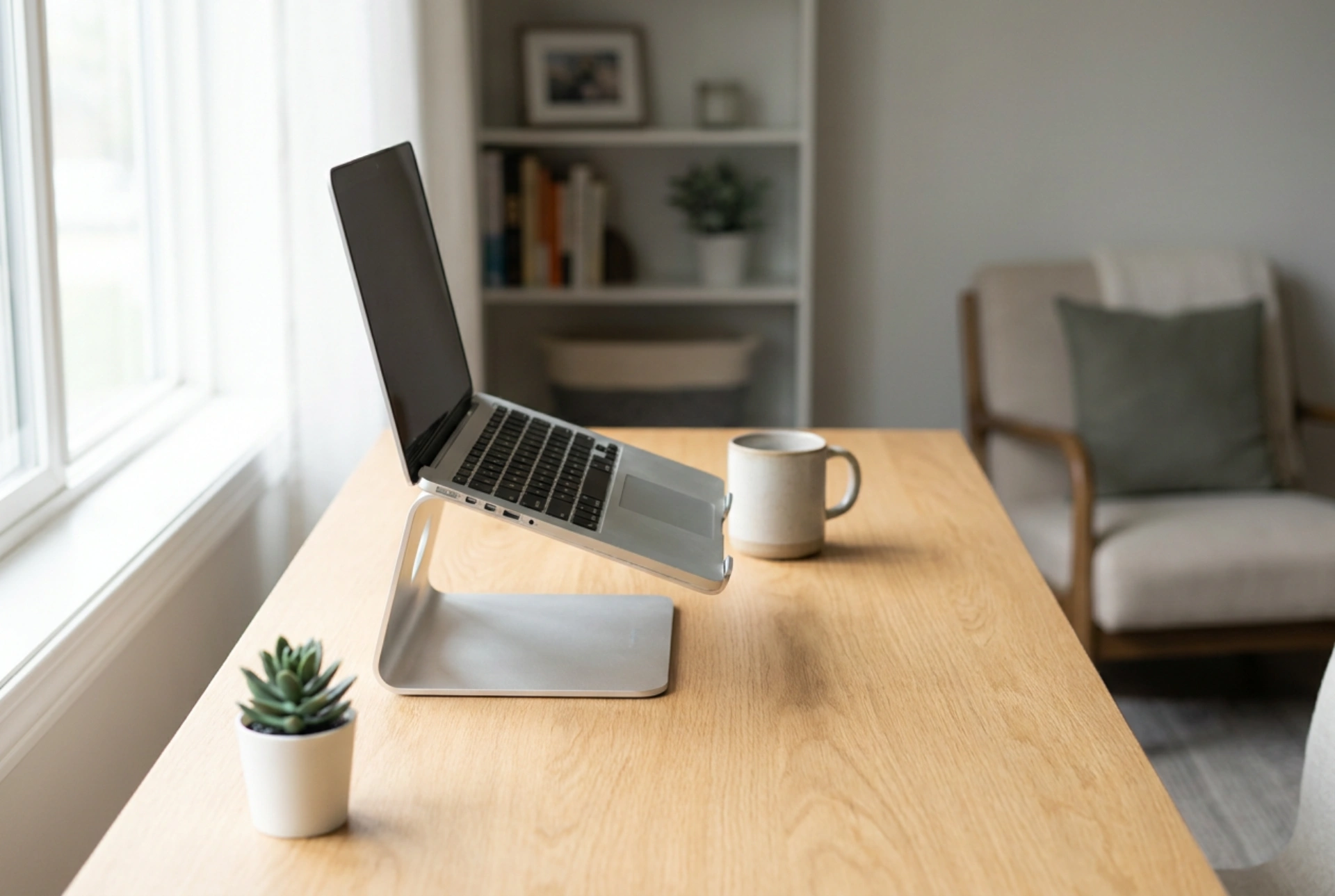

- Passive Stands: These metal or plastic structures elevate the laptop at an angle without using fans. By raising the chassis, you increase the volume of ambient air available to the intake vents. This also prevents the boundary layer effect, where hot air becomes trapped between the warm bottom plastic of the laptop and the flat surface of a desk, heating the intake air before it even enters the machine. Aluminum stands also act as secondary heatsinks, absorbing radiant heat from the lower chassis.
- Active Cooling Pads: These feature integrated fans powered via USB. They work by actively accelerating air toward or away from the bottom of the laptop. However, active pads can sometimes disrupt internal airflow if the pad's fans blow in the opposite direction of the laptop’s natural intake. For example, if a rare laptop design expels air through the bottom, a standard upward-blowing cooling pad will stall the hot air inside, worsening thermal performance.
Airflow Volume vs. Static Pressure
When evaluating active cooling pads, two physical metrics dictate their efficiency: airflow volume (measured in Cubic Feet per Minute, or CFM) and static pressure. Most standard cooling pads utilize large, slow-spinning fans. While they boast high CFM ratings, they possess very low static pressure. This means they are highly effective at moving bulk air in open spaces but struggle to force air through restrictive barriers, such as fine dust meshes or narrow plastic grates on the laptop’s underside.
For laptops with restrictive intake grilles, a cooling pad with smaller, high-pressure fans or a sealed rubber gasket design—which creates a pressurized chamber beneath the laptop—is significantly more effective at driving air through the chassis than a wide, unsealed mesh pad.
Preventing Dust Insulation and Fan Back-EMF
Over time, electrostatic forces draw dust, lint, and hair into the radiator fins. Dust acts as an excellent thermal insulator, severely reducing the convective efficiency of the heatsink. Periodically clearing these pathways is essential. When using compressed gas to clean vents, always hold the internal fans stationary with a thin non-conductive tool like a plastic toothpick. Forcing a fan to spin rapidly via external compressed air can turn the electric motor into a generator, producing back-electromotive force (back-EMF) that can send a damaging current back into the motherboard circuitry.
