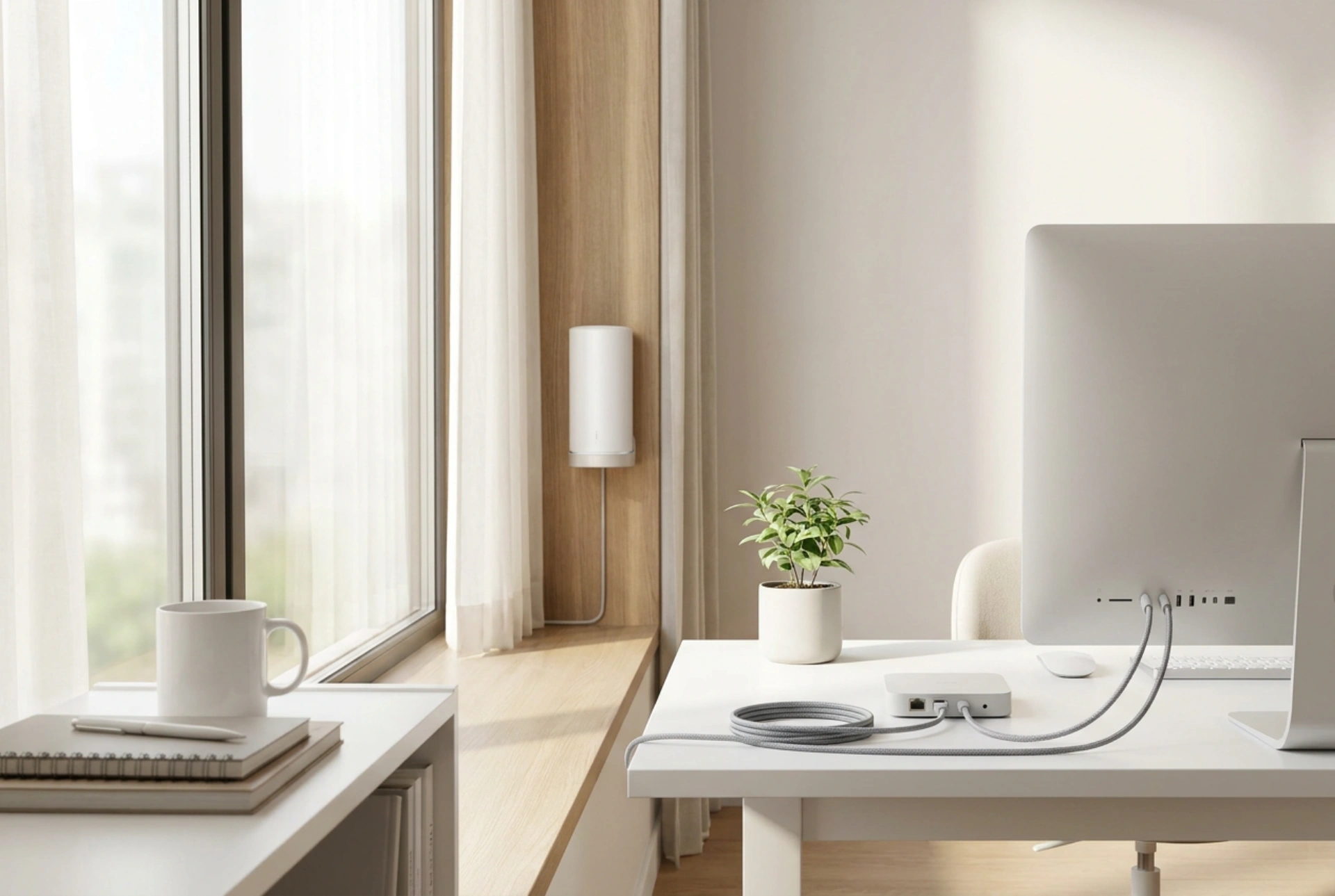

Setting up an LTE router with an external antenna requires a solid understanding of radio frequency propagation to successfully overcome signal attenuation caused by distance, terrain, and structural obstacles. By systematically aligning your equipment and minimizing signal loss along the cable path, you can dramatically stabilize and accelerate your home internet connection.
Understanding the Physics of LTE Signal Attenuation
Radio signals travel from cellular base stations as electromagnetic waves. These waves lose energy over distance—a phenomenon known as free-space path loss—but the most severe degradation occurs when the signal encounters physical barriers. Concrete walls, metal-coated thermal glass, and wet foliage absorb and scatter high-frequency radio waves, turning a strong outdoor signal into a weak indoor connection.
LTE networks operate on various frequency bands, typically ranging from 800 MHz to 2600 MHz. Lower frequencies (such as 800 MHz) have longer wavelengths, allowing them to travel further and penetrate buildings more effectively. However, they offer limited bandwidth. Higher frequencies (such as 2100 MHz or 2600 MHz) provide significantly faster data rates but suffer from rapid attenuation and struggle to pass through solid materials. An external antenna bypasses these indoor obstacles by capturing the signal outside and feeding it directly to your router via low-loss cabling.
Choosing and Positioning the Antenna for Maximum Gain
To maximize signal reception, you must select the appropriate antenna geometry. Directional antennas, such as Yagi-Uda or panel antennas, focus their sensitivity in a narrow beam. This focusing action provides passive gain, measured in decibels isotropic (dBi), which effectively amplifies the incoming signal from a specific direction while ignoring noise from other angles. Omnidirectional antennas, conversely, receive signals from all directions but offer much lower gain, making them unsuitable for weak-signal areas.
Modern LTE systems rely on MIMO (Multiple Input Multiple Output) technology, which transmits data over two separate spatial streams to increase speed. To utilize MIMO, your external setup must feature two antenna elements oriented at orthogonal angles (typically crossed at plus-minus 45 degrees). This polarization diversity prevents the two signals from interfering with each other as they travel through the air, ensuring the router can separate the streams efficiently.
Minimizing Coaxial Cable Attenuation and Impedance Mismatch
The signal captured by an external antenna is delicate. As it travels down the coaxial cable toward your router, a portion of its energy is converted into heat due to the electrical resistance of the conductor and the dielectric losses in the insulation. This loss is measured in decibels per meter and increases significantly with frequency. To preserve your antenna's gain, keep the cable run as short as possible.
Use high-quality, 50-ohm double-shielded coaxial cables designed for microwave frequencies. Standard 75-ohm television cables will cause an impedance mismatch, reflecting a portion of the signal back up the line and severely degrading performance. When installing the cable, avoid sharp bends; bending a coaxial cable beyond its minimum bend radius deforms the internal dielectric insulation, changing its impedance and creating signal-reflecting hot spots. Additionally, seal all outdoor connections with self-amalgamating tape to prevent water ingress, which degrades the copper shielding over time.
The Systematic Alignment Process
Aligning a directional antenna requires patience and precision. Rather than relying on simple signal bars on your router's interface, you must monitor specific mathematical metrics provided in the device's status page:
- RSRP (Reference Signal Received Power): Measures the power of the pilot signals. Values closer to -70 dBm represent an excellent signal, while values below -100 dBm indicate a critically weak connection.
- RSRQ (Reference Signal Received Quality): Indicates the overall quality of the received signal, factoring in noise. Aim for values closer to -3 dB to -10 dB.
- SINR (Signal-to-Interference-plus-Noise Ratio): The ultimate metric for speed. It measures the strength of the desired signal against background noise and interference. Any positive value above 10 dB is good, while values over 20 dB yield maximum data throughput.
To begin alignment, locate your local cellular tower using online coverage maps. Mount the antenna as high as possible on a rigid mast, ensuring a clear line of sight. Rotate the antenna in small, five-degree increments. Because routers average signal metrics over time, wait at least thirty seconds after each adjustment before reading the RSRP and SINR values. Once you identify the angle that yields the highest SINR and RSRP, lock the mounting brackets securely to prevent physical drifting caused by high winds.
