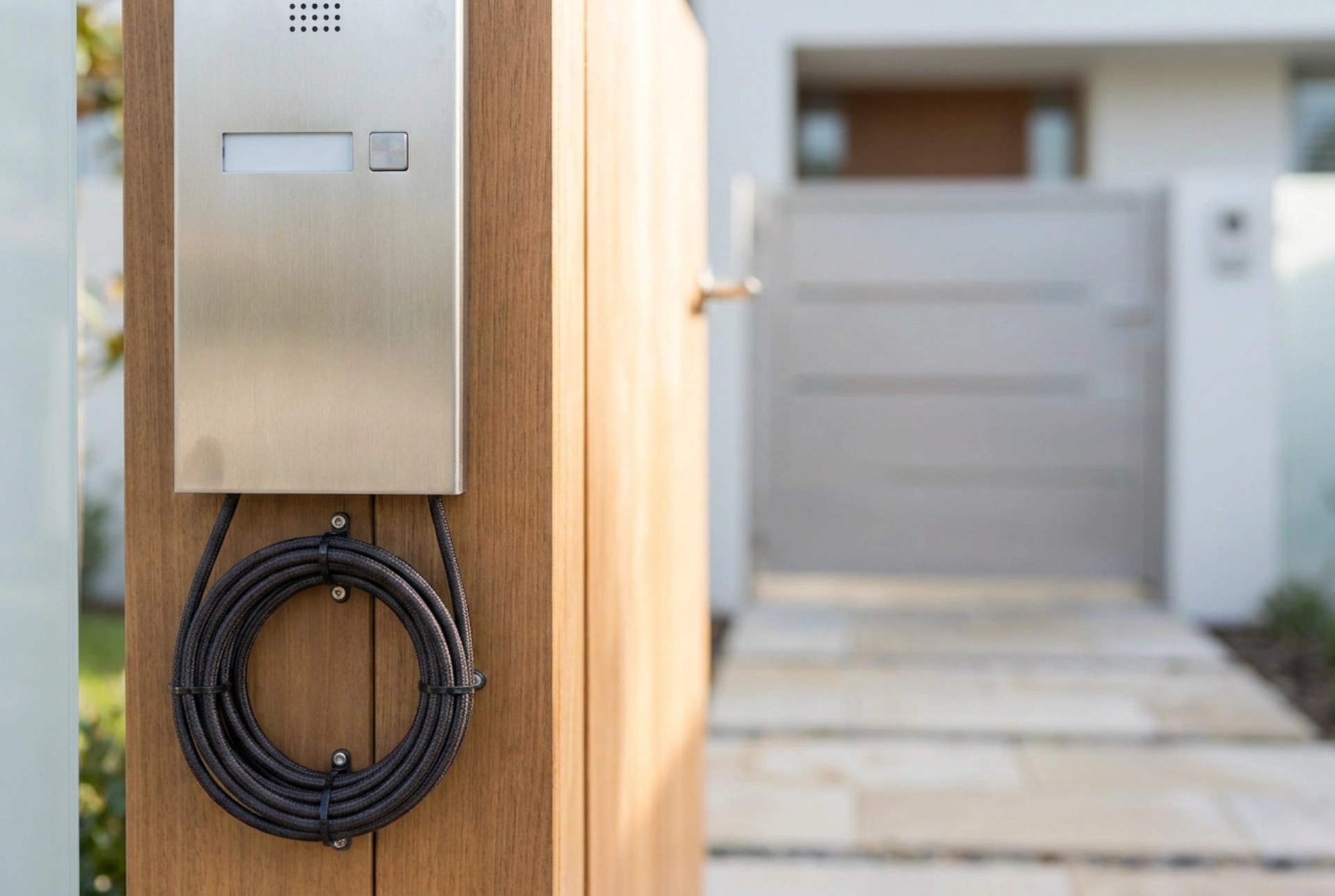

Setting up an outdoor intercom system requires careful planning to protect sensitive electronic components from moisture, temperature fluctuations, and mechanical stress. Proper preparation of the mounting site and cable paths ensures the system remains functional and reliable for years without requiring invasive repairs.
Moisture Prevention and Cable Conduit Dynamics
The primary enemy of outdoor electronics is water, which can enter either through direct precipitation or capillary action within cable conduits. When planning the wiring path from the house to the gate post, standard indoor cables must be avoided. Standard PVC sheathing degrades rapidly under UV radiation and soil moisture, leading to micro-cracks that draw water into the core. Instead, utilize gel-filled, polyethylene (PE) jacketed cables designed specifically for direct burial or outdoor conduit placement.
The routing process requires specific geometric considerations:
- Slope and Drainage: Conduits should always run at a slight downward slope away from both the intercom unit and the residential entry point. This directs condensation flow away from the electrical terminals.
- Drip Loops: Before the cable enters the rear of the intercom housing, create a small downward loop (a drip loop). Gravity forces water droplets to accumulate at the bottom of the loop and fall off, rather than running directly into the connection terminals.
- Conduit Sealing: Seal the ends of the conduit with a non-hardening duct sealing compound. This prevents warm, humid air from the ground or home from entering the cold conduit, which would otherwise trigger heavy condensation near the device's mainboard.
Material Selection and Galvanic Corrosion
Mounting a metal intercom panel directly onto metallic or treated wood posts can trigger chemical degradation if the materials are incompatible. When two dissimilar metals come into contact in the presence of moisture, galvanic corrosion occurs, rapidly destroying the weaker metal.
To mitigate this risk, always use stainless steel (grade A2 or A4) fasteners. When mounting on aluminum or galvanized steel posts, insert nylon or rubber washers between the screw head, the device chassis, and the mounting surface to interrupt the electrical circuit. If the gate post is made of treated wood, be aware that chemical wood preservatives often contain copper compounds which are highly corrosive to aluminum casings. Applying a synthetic barrier plate or a thick elastomeric gasket behind the intercom is essential to isolate the casing from the wood fibers.
Designing the Backplate Seal
A common error during physical installation is completely sealing the perimeter of the intercom backplate with silicone. While this seems logical to prevent water entry, it actually traps internal condensation caused by temperature changes between day and night.
The correct method involves applying high-grade, neutral-cure silicone sealant along the top edge and down the two vertical sides of the backplate. The bottom edge must remain entirely unsealed. This configuration creates an umbrella effect that deflects falling rain while allowing any moisture that condenses inside the unit to drain freely from the bottom opening. Additionally, a physical rain hood mounted above the unit provides an effective mechanical shield against direct heavy downpours and reduces lens flare on video models.
Managing Voltage Drop and Signal Integrity
For gates positioned far from the main house, voltage drop across long wire runs can prevent the intercom or lock release from operating correctly. Standard thin-gauge communication wires have high electrical resistance. Over distances exceeding 20 metres, this resistance causes a significant drop in the delivered voltage, often causing the unit to cycle on and off or fail to actuate the gate latch.
To ensure signal integrity and sufficient power delivery, calculate the required wire gauge based on the distance. For runs up to 30 metres, a copper core diameter of at least 0.8 mm (approx. 20 AWG) is recommended. For longer runs, separate the power supply lines from the data/audio lines, using thicker copper cables for the power supply to minimize resistance, while maintaining twisted-pair wiring for signal lines to prevent electromagnetic interference from nearby mains cables.
