Integrating wireless security cameras with a physical network video recorder (NVR) ensures stable, local data storage without relying solely on cloud subscriptions.
Understanding the Dual Network Architecture
Before initiating the physical setup, it is crucial to understand how wireless IP cameras communicate with an NVR. In a typical home environment, cameras transmit their video signals over the 2.4 GHz or 5 GHz radio bands to your wireless router. The NVR, which should be connected directly to the same local network via an Ethernet cable, intercepts these digital video streams to decode and write them to its internal hard drive.
For a seamless connection, all devices must operate within the same local IP subnet. If your router assigns IP addresses in the range of 192.168.1.X, both the NVR and every wireless camera must occupy a unique address within this specific range. Bandwidth management is also vital; high-definition video streams require substantial throughput, so utilizing the less crowded 5 GHz band or setting up a dedicated Wi-Fi access point solely for the security network prevents dropped frames and latency.
Step 1: Preparing and Positioning the Hardware
Start by installing the hard drive inside your NVR if it did not come pre-equipped. Ensure the SATA and power cables are firmly locked. Connect the NVR to your main router using a Cat5e or Cat6 Ethernet cable, and plug it into a monitor using an HDMI or VGA interface. Power on the NVR and complete the initial system setup wizard, which includes setting a secure administrator password and formatting the internal storage drive.

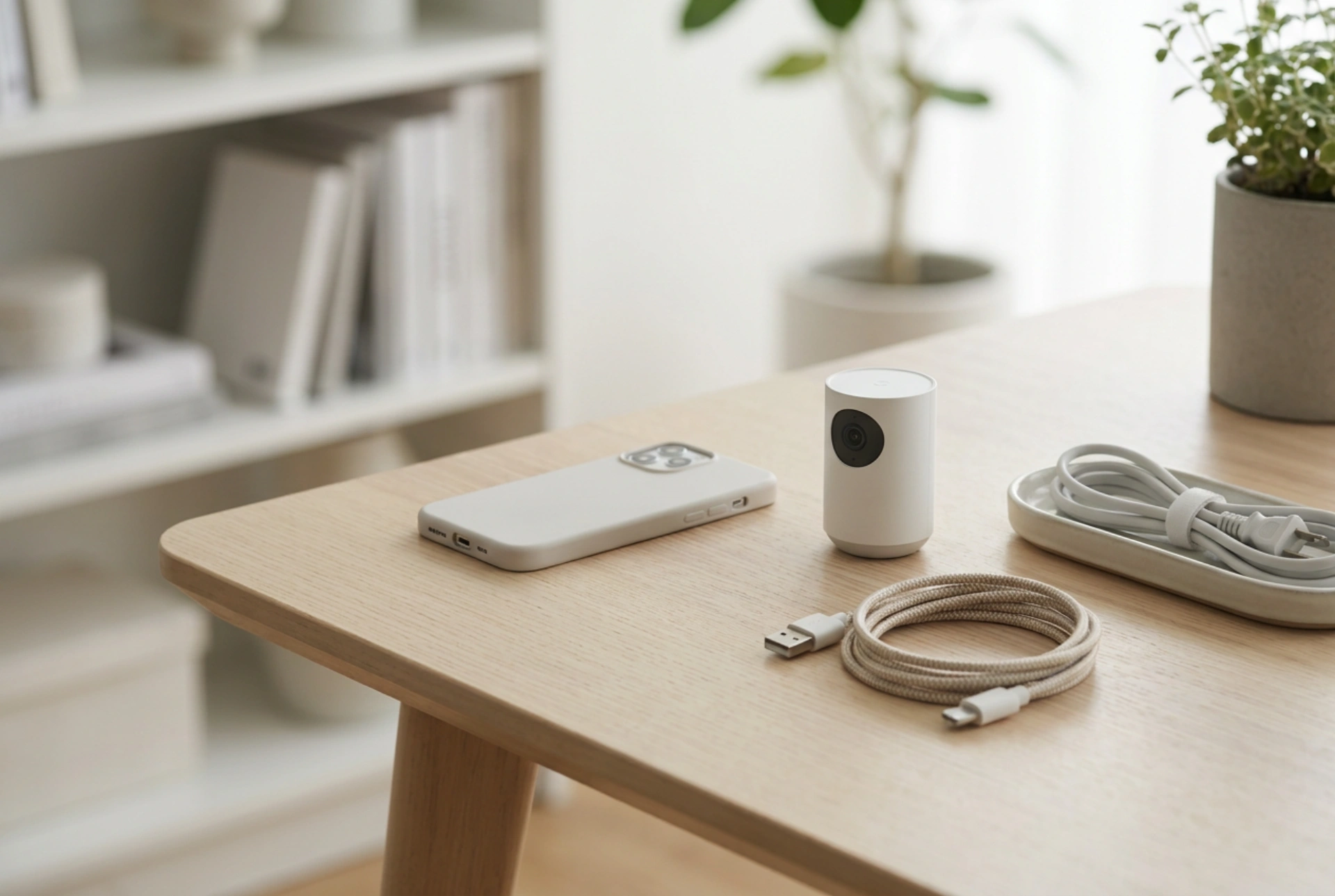

Next, power on your Wi-Fi cameras. For the initial configuration phase, it is highly recommended to place all cameras on a work table near the NVR and router. This proximity minimizes wireless interference and simplifies troubleshooting during the pairing process. You can move the cameras to their permanent physical locations once the connection is fully established and verified.
Step 2: Addressing and Configuring the Cameras
Most wireless cameras initially require a temporary physical connection to the router via an Ethernet cable or a temporary direct Wi-Fi access point generated by the camera itself to configure their network settings. Access each camera's internal software interface using a web browser on your computer or the manufacturer's configuration utility.
Once logged into the camera's interface, navigate to the network settings. Locate the wireless network list, select your home Wi-Fi SSID, and input the correct security passphrase. To ensure the NVR does not lose track of the cameras over time, change the network IP setting of each camera from DHCP (dynamic) to a Static IP address. Assign addresses that sit outside your router's automatic DHCP pool to prevent future IP address conflicts.
Step 3: Pairing the Cameras with the NVR
Disconnect the temporary Ethernet cables from the cameras and let them reboot on their wireless connection. On your NVR monitor, navigate to the device management or camera configuration menu. Initiate an active search or scan for IP devices on the local network.
The NVR will scan the local subnet and list all active IP addresses. Select a camera from the discovered list. You will need to manually enter the unique username and password you established for that specific camera during the configuration step. If the devices support ONVIF (Open Network Video Interface Forum) protocol, ensure this protocol is selected as the connection method. Once verified, the status indicator on the NVR screen should change from red to green, and the live video stream will appear on your monitor.
Optimizing Wireless Stability and Bitrates
To prevent video stuttering and packet loss, configure the encoding settings within the camera interfaces. Utilizing the H.265 compression standard instead of older H.264 codecs significantly reduces the required bandwidth and storage consumption without compromising image resolution. Adjust the frame rate to a stable 15 to 20 frames per second, which is more than sufficient for residential surveillance while preserving network capacity for other household devices.
