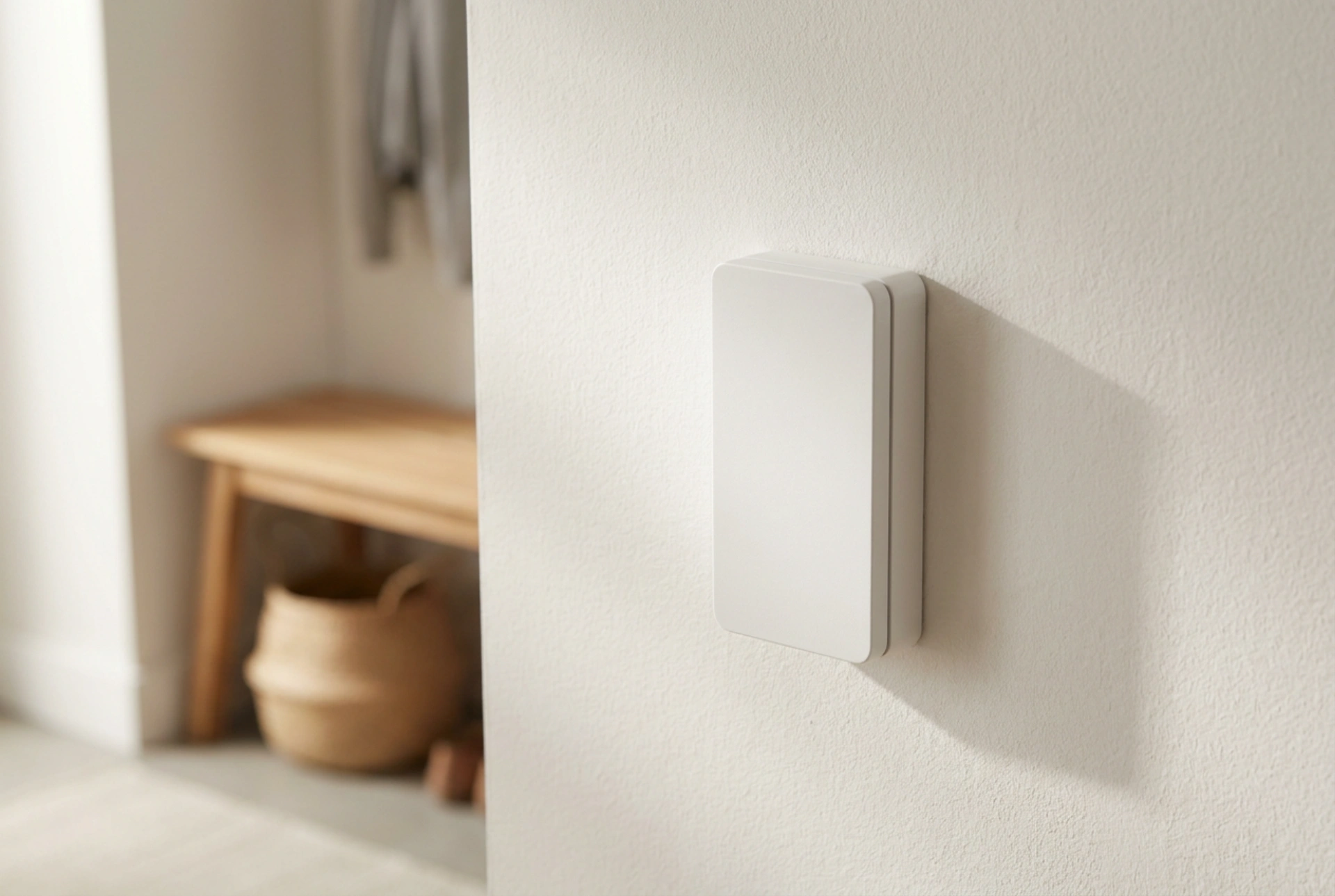

Positioning an infrared motion sensor camera correctly is the single most important factor in ensuring reliable home monitoring and preventing frustrating false triggers.
The Physics of Passive Infrared Detection
To position your camera effectively, you must understand how its sensor detects movement. Most modern security cameras use Passive Infrared (PIR) sensors. These sensors do not emit energy; instead, they detect blackbody radiation—the heat energy emitted naturally by people, animals, and warm objects.
A PIR sensor is split into two halves. It triggers an alert when a warm body crosses from one zone to the other, creating a rapid change in the differential thermal energy. Because the sensor relies on this lateral movement, positioning is critical. If an object walks directly toward the lens, the heat signature changes too slowly across the sensor halves, often failing to trigger the camera until the subject is too close. For optimal detection, always position the camera so that the expected path of movement crosses the lens field of view horizontally or diagonally.
Optimal Height and Angling Calculations
The height at which you mount the camera determines both its field of view and the effective range of the PIR sensor. Mounting a camera too high creates a steep downward angle that limits the depth of the detection zone, while mounting it too low makes it vulnerable to tampering and limits the horizontal span.
- The Ideal Height: Mount the device between 2.1 and 2.4 meters (7 to 8 feet) above the floor. This height provides a clear vantage point while keeping the sensor within range of human-sized heat signatures.
- The Downward Angle: Tilt the camera downward at an angle of 15 to 20 degrees. This tilt ensures the PIR sensor zones project onto the ground plane where movement occurs, rather than projecting straight out into empty space or pointing at the ceiling.
Managing Thermal Interference and False Triggers
Because PIR sensors are highly sensitive to rapid fluctuations in temperature, placing them near thermal anomalies will result in constant false alarms. You must analyze the thermal environment of the room before choosing a permanent mounting spot.
Avoid placing the camera directly opposite windows. Sunlight streaming through glass can quickly heat up floors or furniture, creating a rapid thermal shift that the sensor interprets as motion. Similarly, keep the camera at least 2 meters away from heating vents, radiators, air conditioners, and major appliances that cycle heat, such as refrigerators or computer servers. Forced air drafts can move curtains or blinds; even if the curtain is room temperature, its movement can momentarily block or reveal a warmer background surface, triggering the PIR sensor.
Optimizing Infrared Illumination and Night Vision
At night, your camera relies on built-in Infrared (IR) Light Emitting Diodes (LEDs) to illuminate the area. This light is invisible to the human eye but fully visible to the camera's sensor. However, IR light behaves exactly like visible light when it hits reflective surfaces.
If the camera is positioned too close to an adjacent wall, ceiling, or a large piece of furniture, the IR light will bounce directly back into the lens. This causes a phenomenon known as IR reflection or whiteout, where the foreground is overexposed and completely white, while the rest of the room remains pitch black. To prevent this, ensure there are no physical obstructions within the immediate 30-degree cone surrounding the lens. If mounting in a corner, angle the camera slightly away from the immediate walls to allow the IR light to disperse evenly across the open volume of the room.
